USB Power Supply
VEL05US050-US-BB
Description

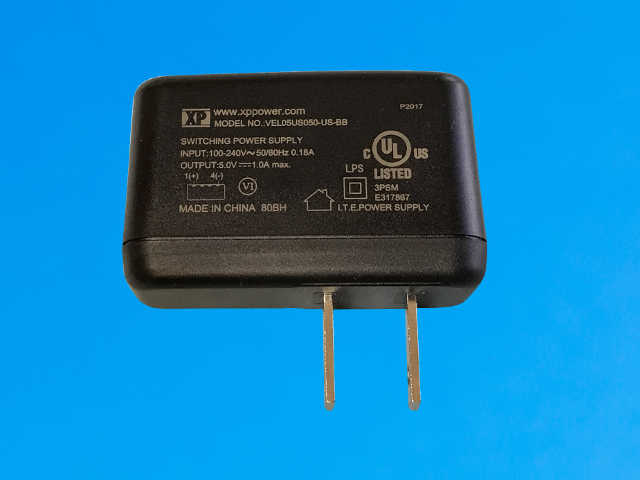

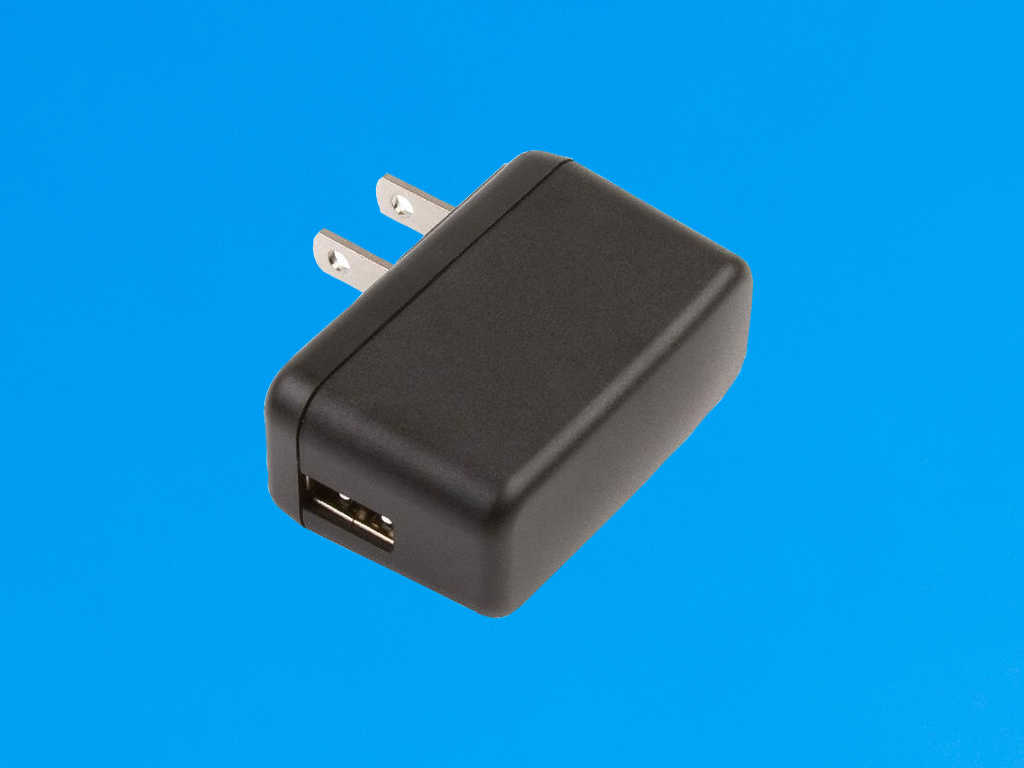

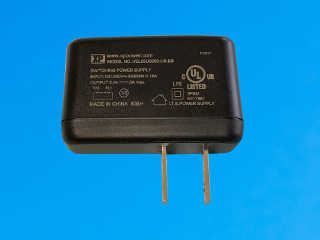

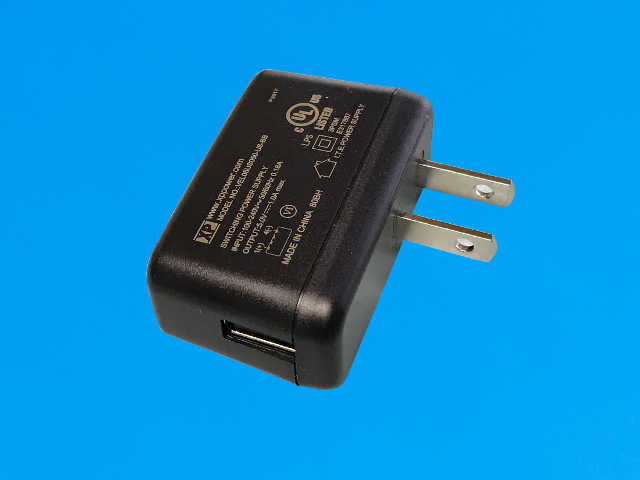

The VEL05 series of wall plug adaptors from XP Power comply with the very latest energy efficiency VI standards with high active mode efficiency and extremely low no load power consumption. The VEL05US050-US-BB is designed to support US power jack. This power supply can provide upto 5 Watts power at 5V through a in-case USB-Type A connector. The compact form-factor permits dense attachment to power-strup or wall supply.
Price (in US Dollars)
| Price Break (Qty) | Unit Price ($) |
|---|---|
| 1 | $ 5.95 |
For large quantities, please contact us to coordinate delivery and price.
Features
Specifications
- Input Voltage:
- 90 to 264 VAC
- 47 to 63 Hz
- Power:
- 5 W
- No load input power:
- < 0.1 W
- Harmonic Currents:
- EN61000-3-2 class A
- Efficiency:
- 74-79%
- Dimensions:
- 2.17 x 0.95 x 1.40 in
55.1 x 24.1 x 35.5 mm
- Operating Temp:
- 0 °C to +60 °C derate linearly from 100% load at +50 °C to 50% load at +60 °C
- Isolation:
- 3000 VAC Input to Output
- Worldwide Safety Approvals:
- IEC60950-1
- US Safety Approvals:
- UL/cUL60950-1
- Other Safety Approvals:
- China Compulsory Certification (CCC) qualified
Approved as Limited Power Source
RCM
- EMC:
- EN55022, level B conducted and radiated
