Netrunr B24C Bluetooth Gateway

Description

The Netrunr B24C Bluetooth gateway provides an easy and cost-effective path to deploy low-power wireless networks.

The Netrunr B24C gateway communicates with IoT devices over the popular Bluetooth Low Energy protocol. In a typical application scenario, the B24C gateway is configured as a Bluetooth central device. In this mode, it can maintain multiple concurrent connections with Bluetooth peripherals and run background scan for Bluetooth advertisements. It can simultaneously behave as an advertising device (or beacon), transmitting advertising information dynamically. More information on the features and specifications is listed at the bottom of this page.

The Netrunr B24C gateway connects to the existing network (backhaul) through Wi-Fi or LAN connection. The B24C gateway uses a cloud-centric architecture to provide an internet-level addressing capability to the gateway and all the devices attached to it. This architecture enables deploying a scalable network across large sites and campuses with superior control and insight into the operations of the network.

Axiomware provides a powerful API for gateway management, device discovery, addressing, control and data transfer. With this architecture, you can create powerful, cloud enabled applications that can seamlessly work with cloud, smart-phones and third-party services. By using our open SDK and code samples in our Github repository, you can get started with minimal effort.

Bluetooth Low Energy Wi-Fi

Product Brochure

Price (in US Dollars)
Price Break (Qty) Unit Price ($)
1 - 2 $ 69.95
3 - 9 $ 66.95
10 - 99 $ 62.95
100 + $ 54.95

For large quantities, please contact us to coordinate delivery and price.

Benefits

  • 24x7 autonomous operation
  • No smartphone required
  • Free FOTA updates
  • Open SDK and API
  • Remote management
  • Gateway level mesh support
  • Small form-factor
  • Low power, micro-USB

Applications

  • Sensor networks
  • Asset tracking / localization
  • Beacon fleet management
  • Digital signage
  • Elder care
  • Lighting control
  • Home automation
  • Condition monitoring
  • Pet care and tracking
  • Cold chain infrastructure
  • Replacement of legacy standards (RS-485, MODBUS and HART)

Specifications

  • Bluetooth
  • Bluetooth Low Energy 4.2
  • Class 2 power level
  • Concurrent Operation in Multiple GAP Roles
  • Up to 14 concurrent connections
  • Fast connect and disconnect capability
  • Full programming capability through powerful SDK
  • Support for Bluetooth SIG and custom GATT profiles
  • Support for pairing and bonding
  • Support for simple legacy "just works" security model
  • Support for Bluetooth 4.2 LE Secure Connections

  • Internet

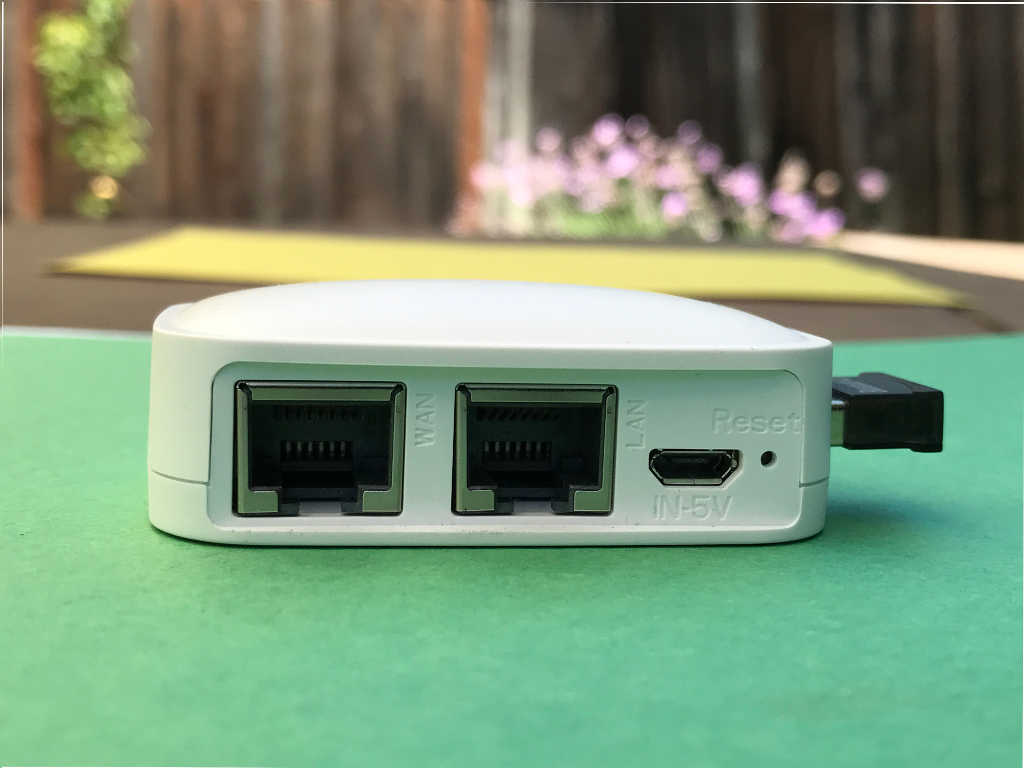

Netrunr B24C back spec
  • 802.11 b/g/n, 300 Mbps Wi-Fi
  • 2.4GHz, 2x2:2
  • 1x 100 Base-TX Fast Ethernet WAN port
  • 1x 100 Base-TX Fast Ethernet LAN port
  • Physical

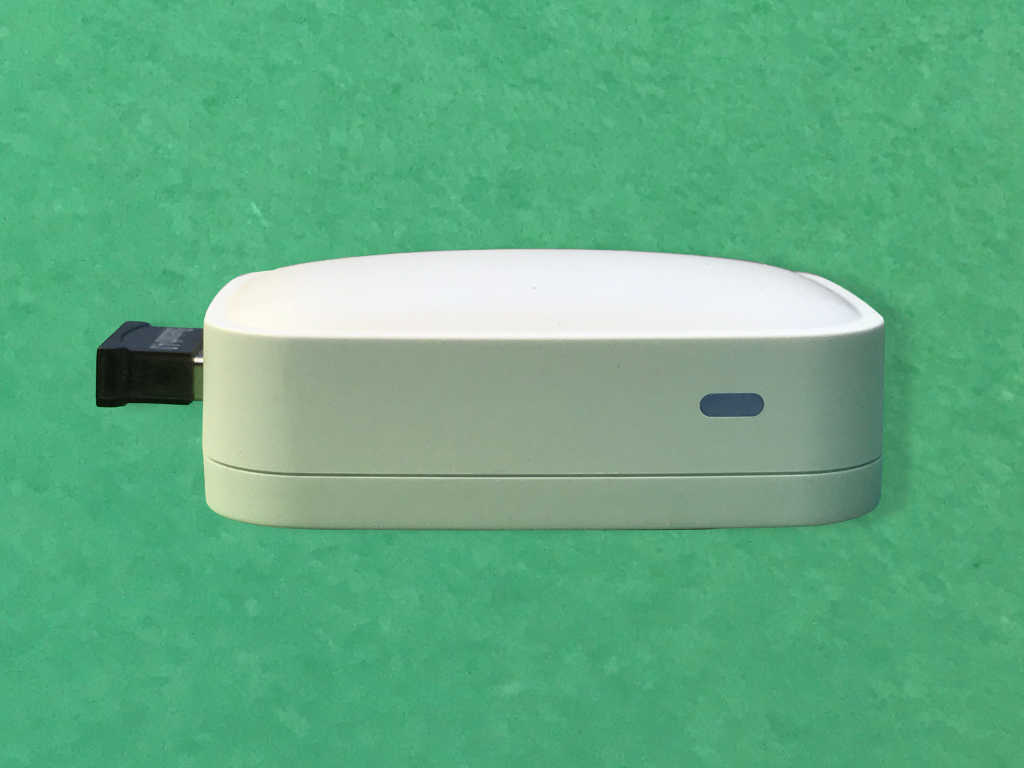

Netrunr B24C front spec

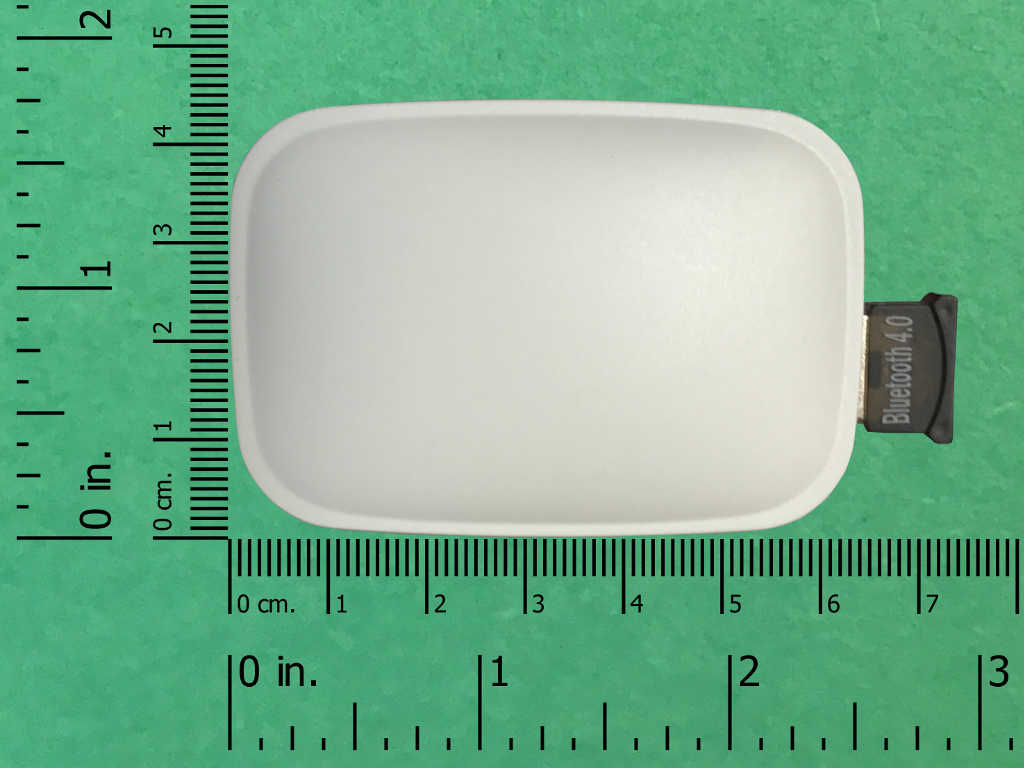

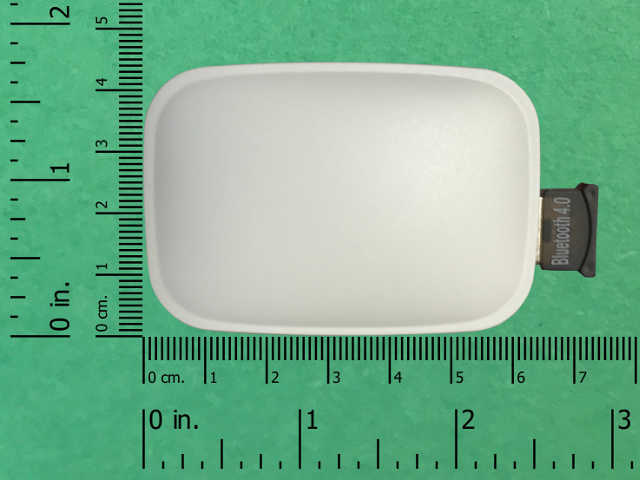

  • 75 x 45 x 22 mm (W x L x H)
  • 0-45º C (32-113º F) operating temperature
  • 95 g (3.4 oz) mass

  • Power
  • Micro-USB connector
  • Voltage: 5V
  • Maximum current: 0.5A
  • Average power consumption: 1 W
  • Peak power consumption: 1.5 W

  • In the box
  • Netrunr B24C Gateway
  • Micro-USB cable for power

Related Products

Netrunr P24C Bluetooth Gateway
Netrunr P24C

Bluetooth Low Energy Gateway

Netrunr P24C adds PoE 802.3af support to ease IoT gateway deployment at scale. Netrunr P...

Netrunr E24 Bluetooth Gateway
Netrunr E24

Bluetooth Low Energy Gateway

Netrunr E24 provides extended range and additional connection capacity to support Bluetooth Low Energy IoT...

Netrunr Edge Server
Netrunr Edge Server

Bluetooth Low Energy Gateway

Netrunr Edge Server provides a powerful platform to manage a fleet of Netrunr B24C, P24C...

Netrunr B24C Bluetooth Gateway

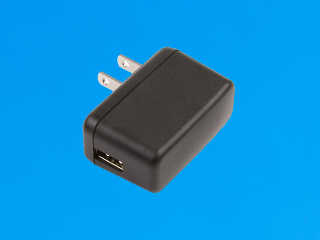

USB Power Supply VEL05US050-US-BB
